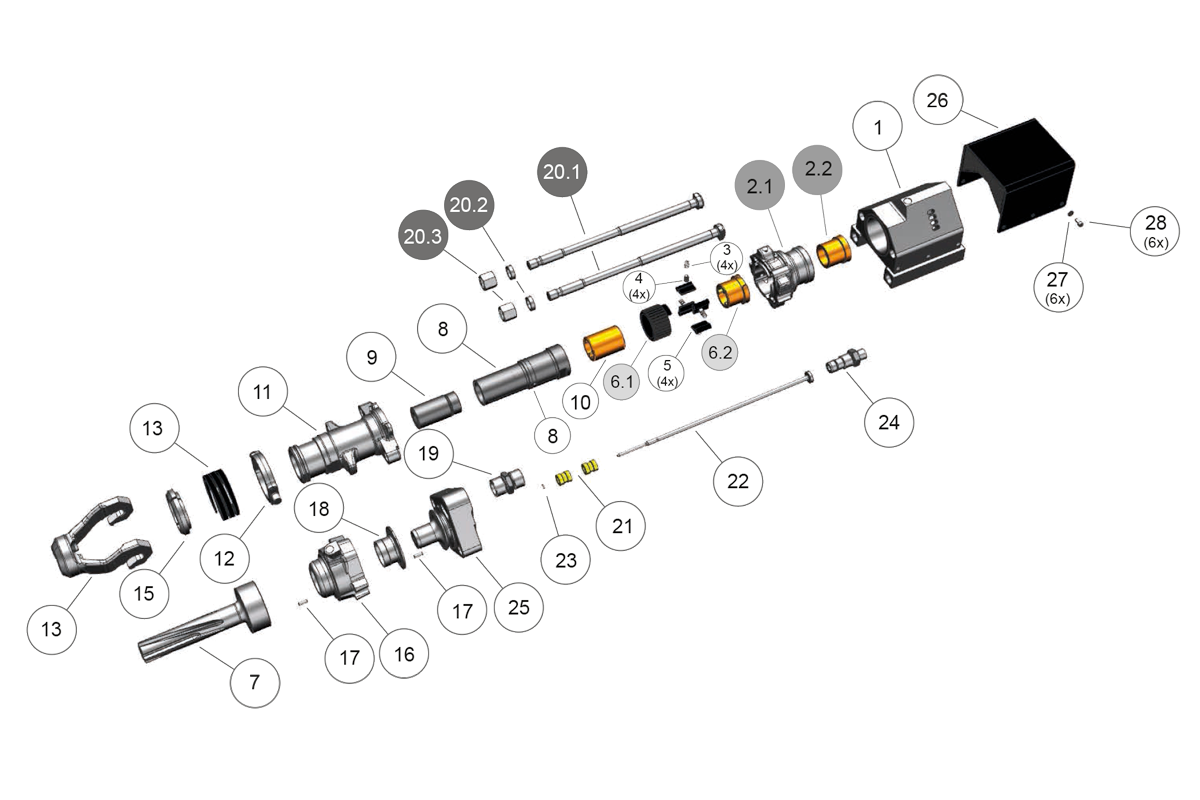

Position | Benennung | Denomination | Artikelnummer | Abbildung |
---|---|---|---|---|
1 | Zylinder | Cylindery | 24042 | ![]() |
2 | Sperrgehäuse komplett | Rotation ratchet housing complete | 23932 | ![]() |
2.1 | Sperrgehäuse | Rotation ratchet housing | 23430 | ![]() |
2.2 | Büchse | Bushing | 72269 | ![]() |
3 | Druckfeder | Spring | 73255 | ![]() |
4 | Bolzen | Bolt | 73254 | ![]() |
5 | Klinke | Ratchet pawl | 23345 | ![]() |
6 | Sperrrad mit Drallmutter | Ratchet wheel with Rotation nut | 23375 | ![]() |
6.1 | Sperrrad | Ratchet wheel | 73260 | ![]() |
6.2 | Drallmutter | Rotation nut | 76771 | ![]() |
7 | Kolben | Piston | 23422 | ![]() |
8 | Büchse | Bushing | 73263 | ![]() |
9 | Bohrerhülse S22x108 | Drill sleeve S22x108 | 73262 | ![]() |
9 | Bohrerhülse S26x108 | Drill sleeve S26x108 | 73252 | ![]() |
10 | Umsatzhülse | Rotation sleeve | 23373 | ![]() |
11 | Vordergehäuse | Front housing | 76772 | ![]() |
12 | Haltering CR251 | Retaining ring | 73241 | ![]() |
13 | Haltebügel S22x108 | Retainer clamp S22x108 | 23407 | ![]() |
13 | Haltebügel S26x108 | Retainer clamp S26x108 | 23408 | ![]() |
14 | Druckfeder | Spring | 72399 | ![]() |
15 | Segment | Segment | 73268 | ![]() |
16 | Ventilgehäuse | Valve housing | 26059 | ![]() |
17 | Zylinderstift | Cylinder pin | 73372 | ![]() |
18 | Ventil | Valve | 72402 | ![]() |
19 | Doppelnippel | Double nipple | 69657 | ![]() |
20 | Spannschraube komplett | Clamping screw complete | 23429 | ![]() |
20.1 | Spannschraube | Clamping screw | 72304 | ![]() |
20.2 | Klemmring | Locking ring | 73265 | ![]() |
20.3 | Mutter | Nut | 73264 | ![]() |
21 | Gummiring | Rubber ring | 73177 | ![]() |
22 | Spritzrohr komplett | Tube complete | 72383 | ![]() |
23 | O-Ring | O-Ring | 70812 | ![]() |
24 | Anschlussnippel | Connecting nipple | 69651 | ![]() |
25 | Steuerdeckel | Control cover | 23789 | ![]() |
26 | Schalldämpfer | Silencer | 76441 | ![]() |
27 | Scheibe | Washer | 69649 | ![]() |
28 | Sechskantschraube | Hexagon screw | 16388 | ![]() |
