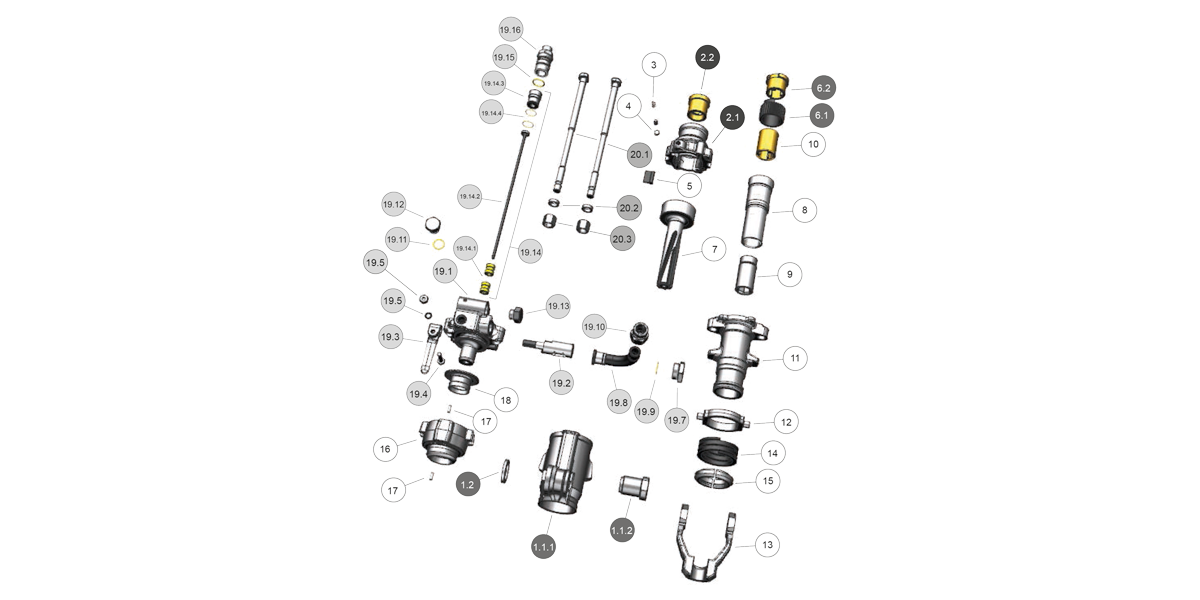

Position | Benennung | Denomination | Artikelnummer | Abbildung |
---|---|---|---|---|
1 | Zylinder komplett | Cylindery | 23449 | |
1.1 | Zylinder mit Büchse | Cylinder with bushing | 23440 | |
1.1.1 | Zylinder | Cylinder | 23421 | |
1.1.2 | Büchse | Bushing | 72274 | |
1.2 | Stützring | Supporting ring | 72533 | |
2 | Sperrgehäuse komplett | Rotation ratchet housing complete | 23932 | |
2.1 | Sperrgehäuse | Rotation ratchet housing | 23430 | |
2.2 | Büchse | Bushing | 72269 | |
3 | Druckfeder | Spring | 73255 | |
4 | Bolzen | Bolt | 73254 | |
5 | Klinke | Ratchet pawl | 23345 | |
6 | Sperrrad mit Drallmutter | Ratchet wheel with Rotation nut | 23375 | |
6.1 | Sperrrad | Ratchet wheel | 73260 | |
6.2 | Drallmutter | Rotation nut | 76771 | |
7 | Kolben | Piston | 23422 | |
8 | Büchse | Bushing | 73263 | |
9 | Bohrerhülse S22x108 | Drill sleeve S22x108 | 73262 | |
9 | Bohrerhülse S26x108 | Drill sleeve S26x108 | 73252 | |
10 | Umsatzhülse | Rotation sleeve | 23373 | |
11 | Vordergehäuse | Front housing | 76772 | |
12 | Haltering CR251 | Retaining ring | 73241 | |
13 | Haltebügel S22x108 | Retainer clamp S22x108 | 23407 | |
13 | Haltebügel S26x108 | Retainer clamp S26x108 | 23408 | |
14 | Druckfeder | Spring | 72399 | |
15 | Segment | Segment | 73268 | |
16 | Ventilgehäuse | Valve housing | 26059 | |
17 | Zylinderstift | Cylinder pin | 73372 | |
18 | Ventil | Valve | 72402 | |
19 | Deckel komplett | Cover complete | 23435 | |
19.1 | Deckel | Cover | 23933 | |
19.2 | Küken | Cock plug | 23427 | |
19.3 | Hahngriff | Throttle | 23346 | |
19.4 | Sechskantschraube | Hexagon screw | 08475 | |
19.5 | Schnorr Sicherung | Cutout switch | 73269 | |
19.6 | Sechskantmutter | Hexagon nut | 73278 | |
19.7 | Überwurfmutter | Cap nut | 75953 | |
19.8 | Krümmer | Elbow | 75943 | |
19.9 | O-Ring | O-Ring | 75892 | |
19.10 | Doppelnippel | Double nipple | 73256 | |
19.11 | O-Ring | O-Ring | 75923 | |
19.12 | Verschraubung | Connected Screw | 72303 | |
19.13 | Verschraubung | Connected Screw | 73257 | |
19.14 | Spülgarnitur | Flushing set | 23433 | |
19.14.1 | Gummiring | Rubber ring | 73177 | |
19.14.2 | Blasrohr komplett | Blowing tube complete | 72297 | |
19.14.3 | Führungsbuchse | Guide sleeve | 72320 | |
19.14.4 | O-Ring | O-Ring | 75892 | |
19.15 | O-Ring | O-Ring | 72922 | |
19.16 | Verschraubung | Connected screw | 72322 | |
20 | Spannschraube komplett | Clamping screw complete | 23429 | |
20.1 | Spannschraube | Clamping screw | 72304 | |
20.2 | Klemmring | Locking ring | 73265 | |
20.3 | Mutter | Nut | 73264 |

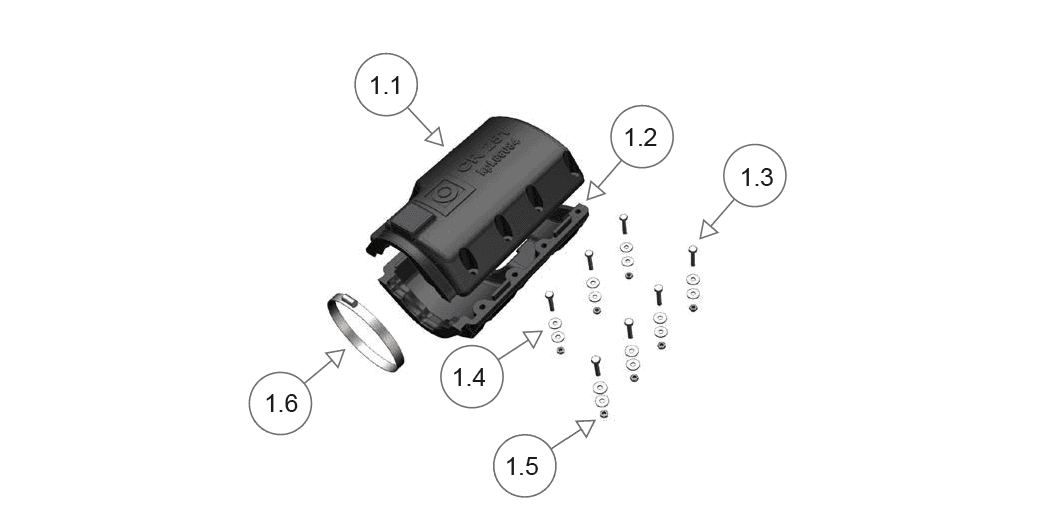

Position | Benennung | Denomination | Artikelnummer | Abbildung |
---|---|---|---|---|
1 | Schalldämpfer komplett | Silencer complete | 23513 | |
1.1 | Schalldämpfer Oberteil | Upper part of silencer | 72727 | |
1.2 | Schalldämpfer Unterteil | Base part of silencer | 72726 | |
1.3 | Sechskantschraube | Hexagon screw | 15613 | |
1.4 | Scheibe | Washer | 74244 | |
1.5 | Sechskantmutter | Hexagon nut | 73337 | |
1.6 | Schlauchschelle | Hose clamp | 72359 |
